Unlike those low budget misting systems, the ones that promise to cool your bird house or patio, trouble is what you actually get is a bit cooler but very much wetter. True humidification cooling power and to stay dry, you need to create a fine enough mist that will evaporate in the air. When the water evaporates, you get much greater cooling and NOTHING GETS WET! The results can be amazing from our misting system. Our high pressure pump operating at 1000 psi combine with high pressure misting lines and high quality anti-drip nozzles, you get a powerful high-end system ready to provide you best humidification, fogging effect and best cooling comfort for years.
Our misting system is a better choice for swiftlet farming:
- No extra cost for wiring, switch socket points and water piping inside swiftlet farm.
- With each anti-drip spray nozzles install about 3 meters apart, your farm gets an evenly spray humidity and cooling effect.
- Very quiet, most acceptable by swiftlets and they love to play around each spraying nozzles.
- Highly recommended by well known guru-guru and consultants.
- Easy to install / low maintenance.
- Reliable, durable, affordable and commonly use in swiftlet farming.
Misting Pump
Our heavy duty industrial standard Mist Pumps have been custom designed to perform under demanding conditions while operating quietly and smoothly. Operating at 1000 psi each Mist Pump is design to be compact and portable for easy handling and storage. All models featuring Auto Stop when water supply runs out. Anti drip and complete control automation control for the best performance Mist Cooling System around.
Misting Pump WM1001
Operating Pressure: 1000psi (70 Bar)
Horse Power: 1HP (1420 RPM)
Suction Volume: 0.92L/Min
Nozzles (0.15mm): 6 - 20 pcs
Single Phase: 230Volt 50Hz
Noise Level: 60dB
Dimension (LHW): 39.5 X 23 X 27
Weight: 15KG
Horse Power: 1HP (1420 RPM)
Suction Volume: 0.92L/Min
Nozzles (0.15mm): 6 - 20 pcs
Single Phase: 230Volt 50Hz
Noise Level: 60dB
Dimension (LHW): 39.5 X 23 X 27
Weight: 15KG
Operating Pressure: 1000psi (70 Bar)
Horse Power: 1HP (1420 RPM)
Suction Volume: 1.7L/Min
Nozzles (0.15mm): 20 - 30 pcs
Single Phase: 230Volt 50Hz
Noise Level: 70dB
Dimension (LHW): 48.5 X 28 X 30.5
Weight: 27KG
Horse Power: 1HP (1420 RPM)
Suction Volume: 1.7L/Min
Nozzles (0.15mm): 20 - 30 pcs
Single Phase: 230Volt 50Hz
Noise Level: 70dB
Dimension (LHW): 48.5 X 28 X 30.5
Weight: 27KG
Operating Pressure: 1000psi (70 Bar)
Horse Power: 1HP (1420 RPM)
Suction Volume: 2.7L/Min
Nozzles (0.15mm): 32 - 58 pcs
Single Phase: 230Volt 50Hz
Noise Level: 70dB
Dimension (LHW): 48.5 X 28 X 30.5
Weight: 27KG
Horse Power: 1HP (1420 RPM)
Suction Volume: 2.7L/Min
Nozzles (0.15mm): 32 - 58 pcs
Single Phase: 230Volt 50Hz
Noise Level: 70dB
Dimension (LHW): 48.5 X 28 X 30.5
Weight: 27KG
Low Pressure Inlet Filter to ensure clean water entering into the pump. This filter is included in our pump which can be washed and reuse.
High Pressure Outlet Filter
All our Misting pumps include High Pressure Outlet Filter to ensure final stage of clean water entering into the mist line.

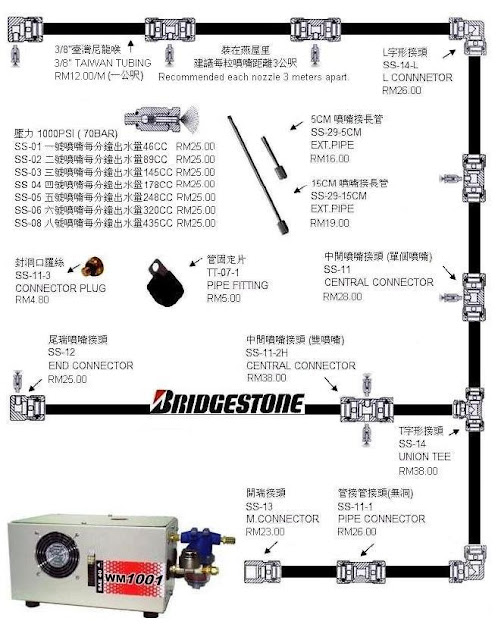

Misting System Fittings
Misting system kits, misting nozzles, & misting pumps can all be found here. Our high quality brass compression fittings ensure maximum reliability and performance. Each Brass Union can be used in high pressure or low pressure applications.
Anti-Drip Nozzles
Our standard high pressure nozzles produce smaller droplets which are released in swirling pattern, creating more movement for finer fog and better cooling. High grade stainless steel construction ensures long rust-free and corrosion-free operation. All nozzles are designed and imported from overseas to handle high pressure systems.
High Pressure Tubing Hose
⅜" High Pressure Tubing Hose rated at 1000 psi for full evaporation of water vapor through misting nozzles.
Heavy Mist Generator DZ3600
Economy, reliable, easy to install and most commonly use in swiftlet farms.
YH3600 Top Cover
Designed for Humidifier DZ3600. Curve end to minimize birds dropping falling in.
Humidity / Temperature Controller
Humidity Controller
Hygrostat
This controller can control both humidity and temperature in your farm. You can set the controller either to a relative humidity or temperature to operate your misting system, humidifier or exhause fan.
Use this humidity controller to control your misting system or humidifier. If you set the controller at low humidity 80% and high 90%, then your misting system or humidifier will activate at 80% and deactivate at 90%.
To operate your misting system / humidifier at a set relative humidity.
Filter Housing
Tough, durable, thick-walled transparent housing, equipped with pressure relief button. To filter out unwanted particles, sediments, rust up to 5 micron size. Flow rate 15 GPM at 60psi.
10" 5 micron Fiber Cartridge
